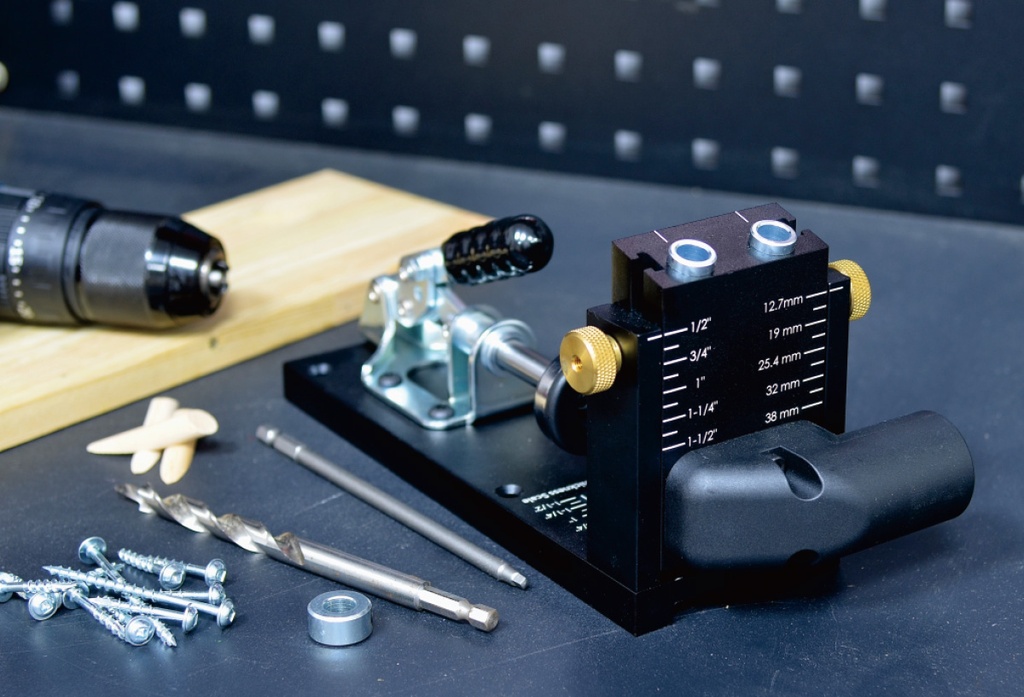

Aluminum Pocket Hole Jig
WF-AP2HK
Contents
- Twin Holes Aluminum Jig
- Dust Extraction Coupling
- Drill Setting Turret
- Material End Plate (For Mobile Use)
- 3/8" Hss Step Drill Bit
- Square Driver 150mm Bit No.2 Robertson
- Depth Stop Collar
- Hex Wrench (For Depth Stop Collar Use)
- Hex Wrench (For Mobile Use)
- 4 x Bench Fixing Screws
- #7 1 Coarse Square Driver Screws with Pan-Head x10pcs
- #8 1-1/4 Coarse Square Driver Screws with Washer-Head x10pcs
- #8 1-1/2 Coarse Square Driver Screws with Washer-Head x10pcs
- #8 2 Coarse Square Driver Screws with Washer-Head x10pcs
- #8 2-1/2 Coarse Square Driver Screws with Washer-Head x10pcs
- Instruction Manual
- Box
Packaging
feature
Technical
Specifications
|
|
Material
thickness
|
12.7
mm(1/2")~38 mm(1-1/2")
|
Drill
bit size
|
9.5
mm(3/8")
|
Square
driver bit
|
No.2x150
mm(6")
|
Hole
pitch
|
30mm(1-3/16")
|
Dust
port
|
Internal 31mm(1-1/4")
|
Professional Pocket hole jig system of Twin holes
High hardened aluminum material body parts
High hardened metal drill guide
Easy to use and quickly remove for install
![](/web/image/2712-45bd5b73/WF-AP2HK-07.jpg?access_token=d4a31f87-5f7f-4cf9-bc99-3768ff752496)

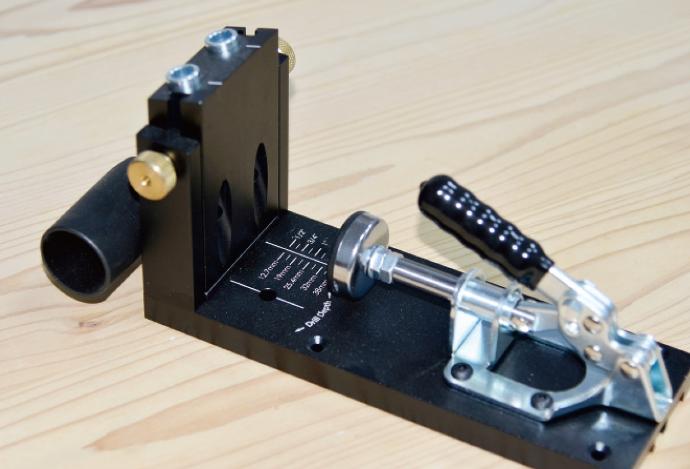

Adjust for wood materials from 1/2”to 1-1/2”
![](/web/image/2709-7effd1fd/WF-AP2HK-10.jpg?access_token=58b23456-0807-4013-9b3b-7d7807945781)

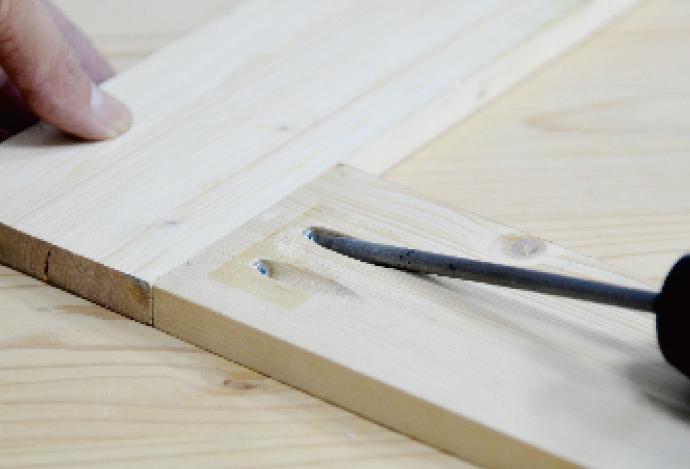

Easy to set drill depth and tighten
![](/web/image/2707-40fdd7b2/WF-AP2HK.jpg?access_token=31db9ebb-380c-4d9c-9361-b031399f9039)
Adjustable height columns for different thickness
![](/web/image/2708-7e7e498f/WF-AP2HK-02.jpg?access_token=b94ae08e-7d96-4cd6-9f23-087611dac757)

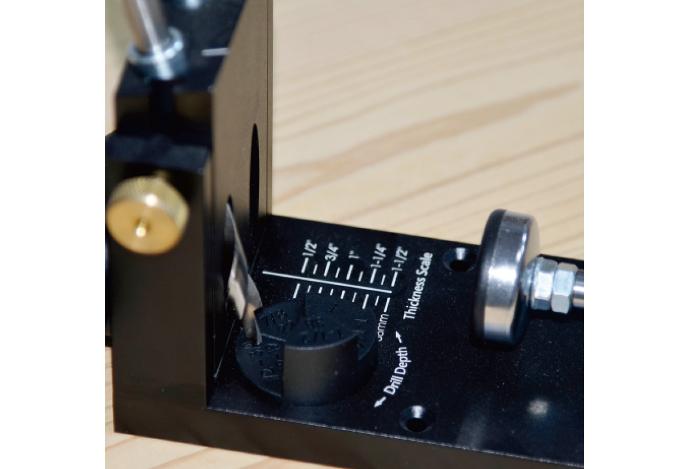

Drill depth turret for setting up
![](/web/image/2710-7e06aa9e/WF-AP2HK-08.jpg?access_token=21306857-feea-4d27-a3af-d16c48289e3b)

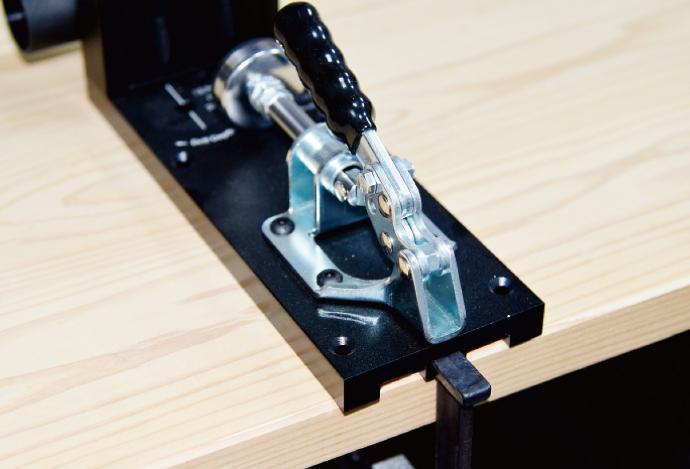

T solt for Groove clamp
![](/web/image/2711-0728ed13/WF-AP2HK-09.jpg?access_token=943555ab-36b4-4ed7-bbd0-996ab88d8182)

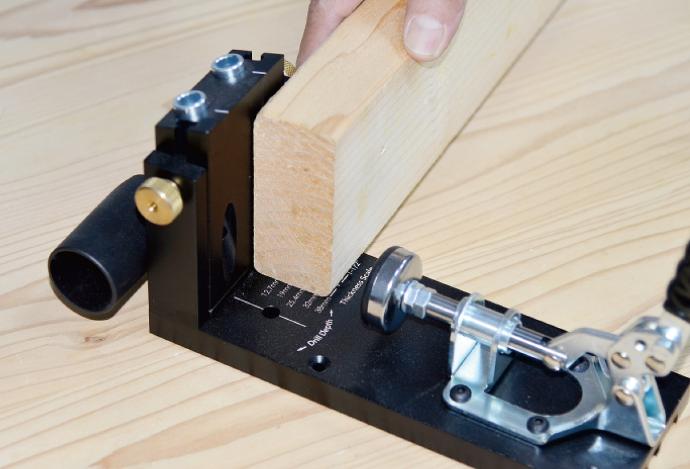

Scale on the jig for measurement
